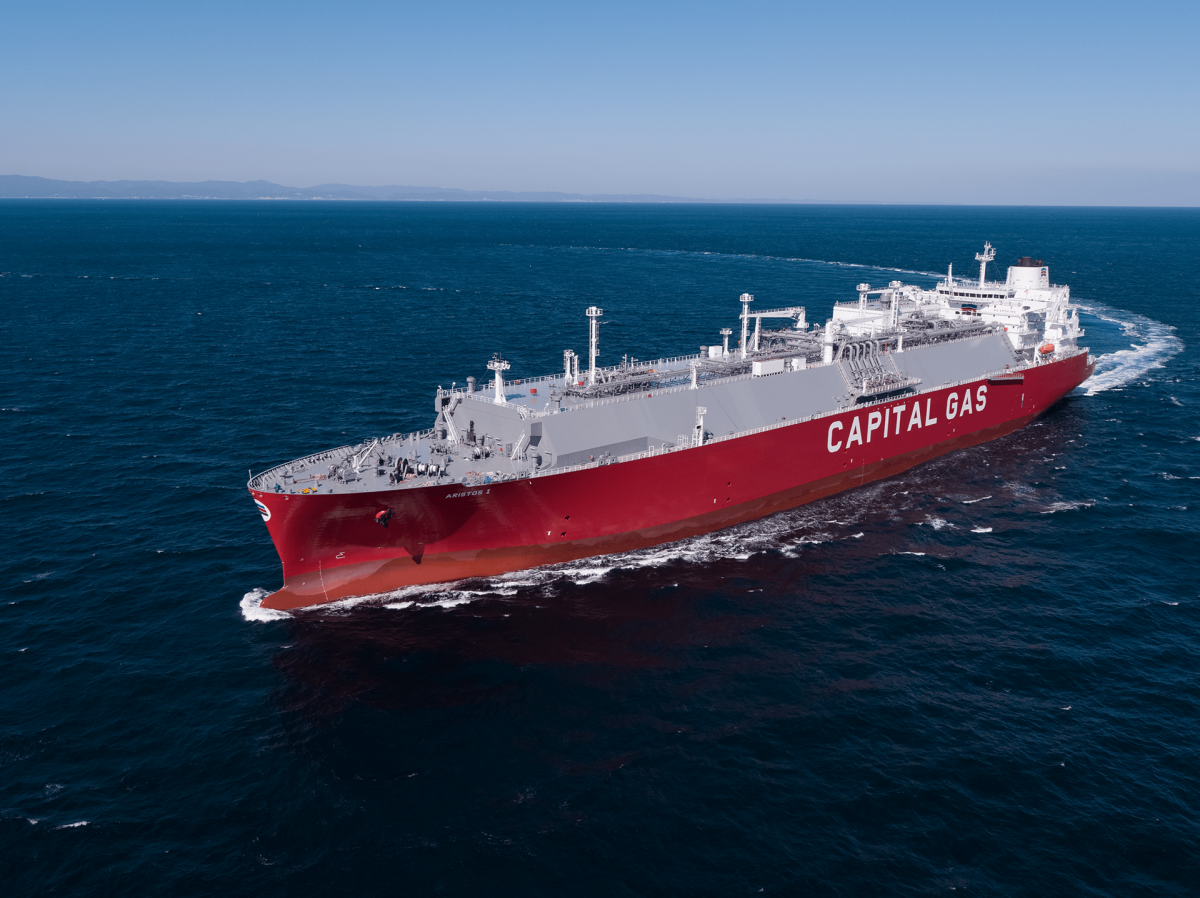

ARISTOS I
BUILT: 2020
CLASS: BV
FLAG: MALTA
BUILDER: HYUNDAI HEAVY INDUSTRIES, S.KOREA
VESSEL MAIN PARTICULARS
Propulsion:
X-DF
Cargo capacity:
174,000
Containment system:
GTT MKIII FLEX
Length, overall:
299 m
Length, between pp:
291 m
Breadth:
46.4 m
Depth:
26.5 m
Draught, design:
11.5 m
Draught, scantling:
12.5 m
Deadweight at Td:
81,451 MT
HFO / LSFO:
5000 m3
MGO / LSMGO:
500 m3
Fresh water:
400 m3
Ballast water:
64.500 m3.
Urea:
70 m3
Complement:
38 p
Cargo tanks:
174.000 m3
BOR:
0.085 % / day
Active BOR:
0.040% / day
PROPULSION
Main engine type:
Two, HYUNDAI - WINGD 5X72DF
Tuning method:
Standard
NOx Tier III solution:
Diesel mode with HP SCR and gas mode
Nominal rating:
2 x 16,125 kW
MCR:
2 x 12,112 kW
Service speed at Td NCR:
19.5 kts
Sea margin:
20 %
Energy saving device:
Hi-Fin, Hi-Rudder
DFOC at NCR:
92.00 t/d
DGC at NCR:
77.1 t/d
Cruising range:
24.100 NM
EQUIPMENT
Manifold service crane:
10 tons S.W.L. x 2 sets
Cargo pumps:
1.850 m3/hr x 165mlc x 8 sets
Spray pumps:
50 m3/hr x 145 mlc x 4 sets
Ballast pump:
3.000 m3/hr x 35mTH x 3 sets
Diesel generator:
3.680 kW x 2 sets
2.760 kW x 2 sets
2.760 kW x 2 sets
Emergency generator:
750 kW x 1 set
