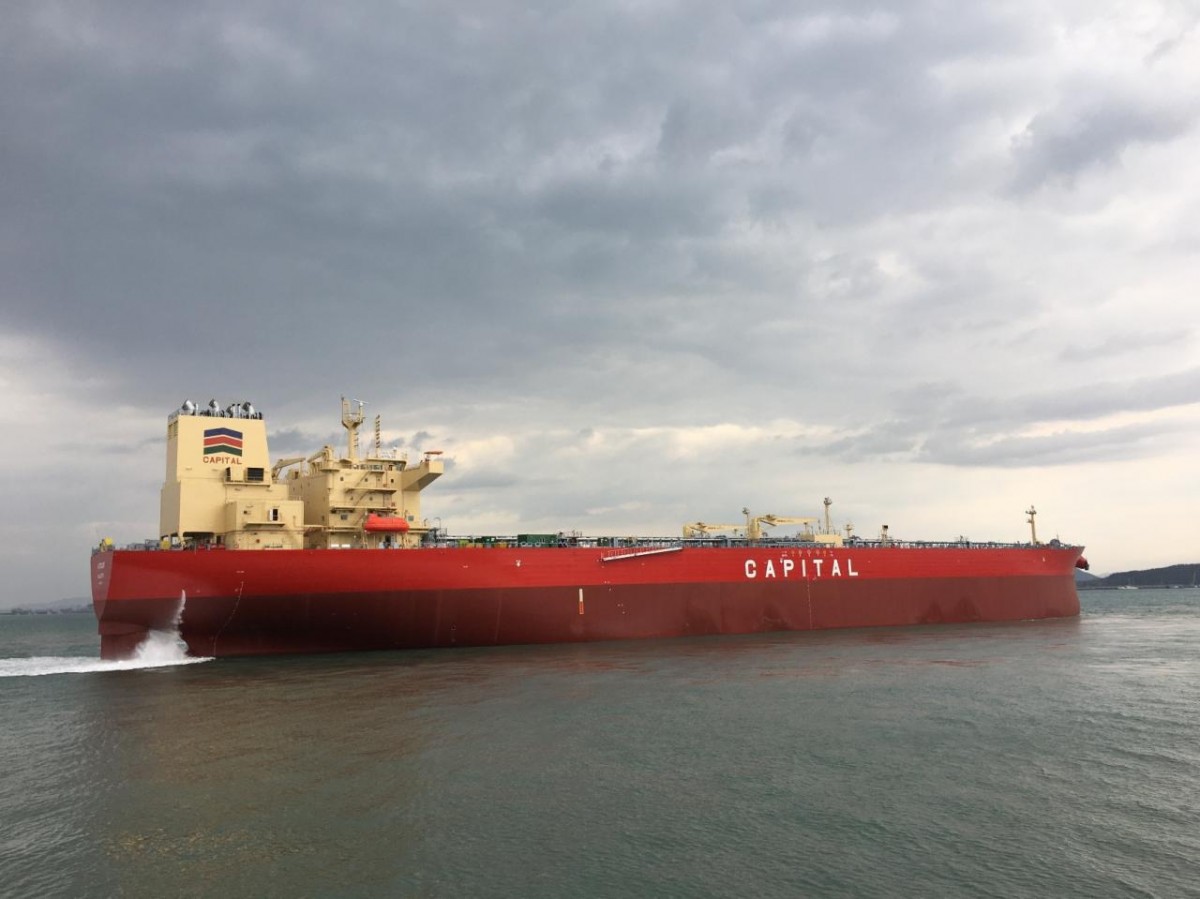

AITOLOS

BUILT: 2020
CLASS: LRS
FLAG: MARSHALL ISLANDS MARSHALL_ISLANDS
BUILDER: Daehan Shipbuilding Co., Ltd
VESSEL PARTICULARS
Type of vessel:
Crude Oil Tanker
Summer deadweight:
115521,00 mt
Summer draft:
15.22 m
Summer freeboard:
6.02 m
GRT / NRT:
62826.00 / 36056.00
LOA:
249.90 m
Beam:
44.04 m
Depth:
21.20 m
Keel to mast:
49.50 m
CARGO ARRANGEMENTS
Cargo / slop tanks:
12 + 2
Cargo capacity (98% ex slop tanks):
129,800 m3 (100%)
Slop tank capacity (98%):
2,800 m3 (100%)
Cargo tank coating:
2 x Epoxy (delete this field perhaps)
Heating arrangement:
heating coils
SBT / IGS / COW:
YES (not much detail in the spec except for COW to comply with MARPOL 73/78)
Number of manifolds on each side:
3
Natural segregation with double valves:
3
Cranes / SWL:
2 x 15mt cargo hose handling+Provision Cranes 1 x 4mt+ 2 xmt
CARGO PUMPS
Cargo pump type:
Centrifugal, steam turbine driven
Number of cargo pumps:
3
Capacity of cargo pumps:
3,000 m/h
PROPULSION
Main engine:
MAN B&W 6G60ME-C9.5 x 1 set
Diesel generators
3 x 960kW @ 900 rpm (pocket plan conflicts with spec)
Propeller type:
Fixed pitch, keyless, right-hand rotating (Nickel aluminum bronze)
Bow thruster:
Not applicable (delete this field)
