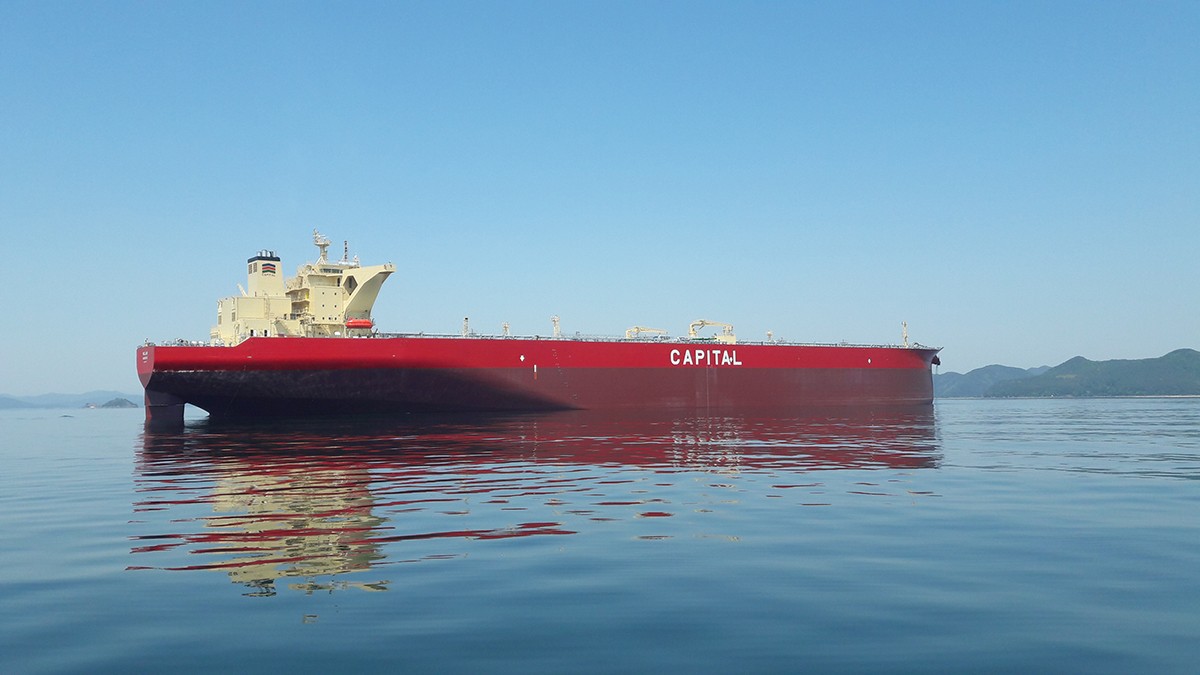

AGITOS

BUILT: 2019
CLASS: ABS
FLAG: LIBERIA LIBERIA
BUILDER: Samsung HI, S.Korea
VESSEL PARTICULARS
Type of vessel:
A1, Oil Carrier, ESP, AMS, ACCU, CSR, CPS, POT, RRDA, IHM, BWE, SPMA, UWILD, CRC(I), TCM, ENVIRO, VEC, BWT, PORT, NBL
Summer deadweight:
320,784 MTS
Summer draft:
22.825 m
Summer freeboard:
5.222 m
GRT / NRT:
161,983 / 110,141
LOA:
332.98 m
Beam:
60 m
Depth:
30.50 m
Keel to mast:
63.50 m
CARGO ARRANGEMENTS
Cargo / slop tanks:
15 / 2
Cargo capacity (98% ex slop tanks):
347,089.0 m³
Slop tank capacity (98%):
10,889.00 m³
Cargo tank coating:
Epoxy BOTTOM AND ABOVE UP TO 1 M
Heating arrangement:
Aluminized - brass heating coils in slops
Number of manifolds on each side:
3 x 500 mm
Distance bow to mid-point manifold:
163.20 Metres
Distance main deck to center manifold:
2,100 mm
Distance manifolds to ship's rail:
4,600 mm
Cranes / SWL:
2 x 20 T
CARGO PUMPS
Cargo pump type:
Centrifugal
Number of cargo pumps:
3
Capacity of cargo pumps:
5,000 m³/hr
PROPULSION
Main engine:
DOOSAN MAN B&W 7G80ME-C 9.5 TIER III 26890 Kw @ 72 RPM
Diesel generators
3 X HYUNDAI - HIMSEN 7H21/32 900 RPM/1540KW
